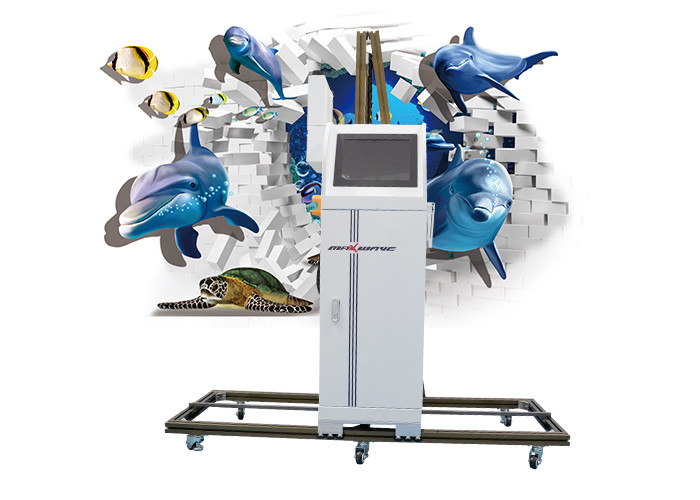

| Model | 3D Wall Printer Machine |
| Body | Aluminum-magnesium alloy, Frame structure |
| Mode of Operation | Wireless touching screen |
| Nozzle type | Japan design |
| Sprinkler protection | Full-directional sprinkler protection fixing plate, effectively
reducing the spray head damage |
| Ink | Waterproof for wall printing |
| The data transfer | Integrated head, telecommunication transmission system with optical
fiber data transfer |
| Surface tracking | Bi-curved BANNER sensor |
| Motor technology | Brush-less motor with no bar grating, non- grating strip
cleaning,free of maintenance |
| Feeder system | Automatic feed |
| Ink absorption technology | Improved ink absorb-er, good sealing performance, high efficiency
of sprinkler cleaning, less ink waste, strong adsorption capacity |
| Technology of coloured drawing | Adopt "VSDT variable ink-drop technology", high fault-tolerant
feather technology, more uniform picture, more delicate ink point |
| Memory recall | New interrupt patch function, automatic remember the break point,
automatic recovery the starting position |
| Speed of coloured drawing | 3 speed adjustable: High, Middle, Low |
| Painted resolution | Indoor: 720 x 300 dpi, 720 x 600 dpi, 720 x 1200 dpi, 720 x 1440
dpi | Outdoor: VL720 x 300 dpi, VL720 x 600 dpi, VL720 x 1200 dpi, VL720
x 1440 dpi |
| Image type | JPG,BMP,TIFF,PDF,AI,PSD,CDR |
| Actual painted size | Height :2500mm , Width (could be extended) |
| Atlas type | The machine can store electronic files and external USB drives |
| Power | AC110V (90-132V) / AC220V (180-264V) Alternating current, 47-63HZ |
| Built-in power supply | Built-in lithium battery UPS back-up power, after power failure,
Can still work for 10 hours when power failure (when battery is
full-charged) |
| The power consumption | 20W (no load) ,75W (general) , 250W (maximum) |
| The noise | Standby < 20dBA, drawing < 50dBA |
| Operation | -10℃ -60℃ (14 F-140 F) 10 -80% relative humidity with non -
coagulated state |
| Storage | -30℃-60℃(-22°F-140°F) 10%-80% relative humidity with non -
coagulated state |
| The system platform | Windows XP / Win7 / Win8 / Win9 / Win10 |
| The main-board configuration | 8 core CPU, 4GB DDR memory, USB 2.0 / 3.0 data interface |
| Machine language | Chinese, English (customize) |
| Recognize | Green environmental certification, national standard test (GB
18582-2001, GBT 9756-2001), CE certification |
| Fast mode | A | 10 M² /h |
| Production mode | B | 6 M² /h |
| Quality model | C | 4.5 M² /h |
| High precision model | D | 3 M² /h |
| Dazzle colour pattern | Adding dazzle mode, greatly enhance color saturation and the
picture is more vivid & beautiful |
