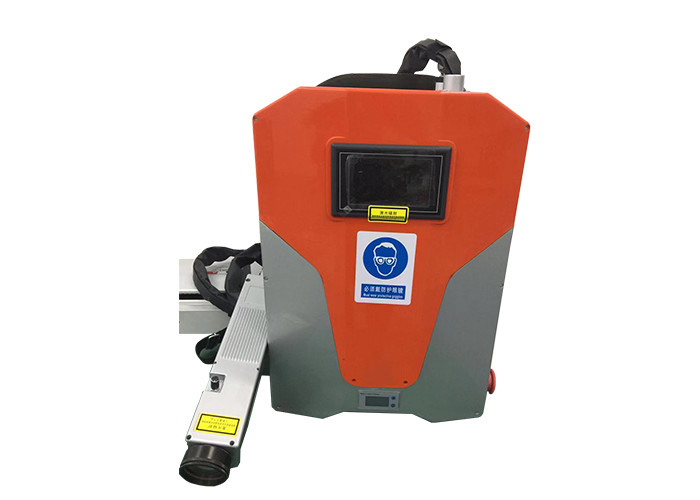

    50mJ Fiber Laser Rust Cleaning Machine Water Cooling 500 Watt Laser Cleaner

    Ask Lasest Price
    Brand Name : Maxwave
    Model Number : MW-LC50W
    Certification : CE FCC SGS
    Payment Terms : T/T, Western Union
    Supply Ability : 20000/Per Year
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    50mJ Fiber Laser Rust Cleaning Machine Water Cooling 500 Watt Laser Cleaner

    50mJ Fiber Laser Rust Cleaning Machine Water Cooling 500 Watt Laser Cleaner

    Mini 50w Portable Fiber Robot Metal Oil Laser Cleaner Rust Paint Removal Price Laser Cleaning Machine


    Parameter


    ModelMW-LC60MW-LC100MW-LC200MW-LC500
    Laser sourceFiberFiberFiberFiber
    Laser Power60W100W200W500W
    Fiber cable L3 M3 M5 M10M
    Pulse Energy1.5 mJ1.5 mJ2 mJ50 mJ
    Wavelength1060nm1060nm1060nm1060nm
    Frequency50-500KHz50-200KHz20-50KHz10-50KHz
    Clean speed≤5 M²/Hour≤10 M²/Hour≤15 M²/Hour≤50 M²/Hour
    Scann speed0-7000mm/s0-7000mm/s0-7000mm/s0-7000mm/s
    CoolingAir coolingAir coolingAir coolingWater cooling
    Dimension450*350*500650*350*560900*600*11001600*1100*1800
    Weight30Kg40Kg120Kg300Kg
    Beam width10-100mm10-100mm10-100mm10-100mm
    OptionalManualManualManualManual
    Temperature5-40 ℃5-40 ℃5-40 ℃5-40 ℃
    VoltageSingle Phase 220V, 50HZSingle Phase 220V, 50HZSingle Phase 220V, 50HZSingle Phase 220V, 50HZ

    Comparison with Traditional Clean Methods:


    ComparisonLaser CleaningChemical CleaningMechanical GrindingDry ice cleaning
    Washing Methodnon-contact cleaningcontact cleaningAbrasive contact cleaningnon-contact cleaning
    Harm to base materialNoneYesYesNone
    Washing EfficiencyHighLowLowMid.
    ConsumablePowerChemical DetergentAbrasive paper, grinder, abrasive stoneDry Ice
    Washing resultVery good, very clearMedium, unevenMedium, unevenGood, uneven
    Precision WashingAccuracy controllable. High precisionUncontrollable, low precision.Uncontrollable, medium precision.Uncontrollable, poor precision.
    Safety/EnvironmentNo pollutionChemical pollutionDust pollutionNo pollution
    OperationEasy to operate, portable or automation optional.Complicated process, higher technical requirement of the operator. Pollution prevention measures required.Need more time & manpower. Pollution prevention measures required.Easy to operate, portable or automatic.
    InvestmentHigh investment on machine. But no consumable, low maintenance costLow investment on machine. But expensive consumablesMedium investment on machine. High man-power cost.Medium investment on machine. High consumable cost.

    Description

    laser descaling machine is the latest high-tech product. Easy to install, operate, easy to achieving automation.. Plug in power, turn on and start cleaning - without chemicals, media, dust, water.

    Cleaning with no detergent, no media, no dust, no water. Auto focus, can clean curved surface, gentle cleaning surface. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.


    Laser absorption rate for metal

    Based on the metal surface cleaning customized laser, according to the laser absorption rate of different wavelength of materias, the prior art selection of 1064 nm solid-state lasers or fiber lasers, metal absorption rate of up to 30%, with special mode spot, both can effectively clean rusty, and also protect Base metal with no damage.

    Considering the stability of laser, the use of cost and integration methods and other factors, the latest technology using wavelength of 1064nm fiber laser is better than solid lasers, Maxphotoncis 100W pulse laser cleaning source, is the best configuration for hand-held laser cleaning.
