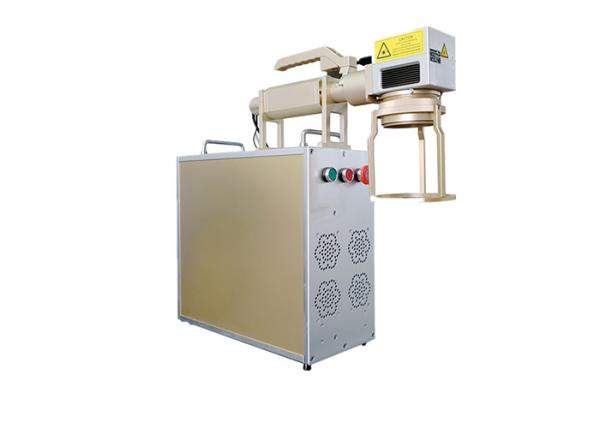

    Portable 20w Fiber Laser Marking Machine 4500DPI Lift Platform

    Ask Lasest Price
    Brand Name : Maxwave
    Model Number : MW-JPT30W
    Certification : CE FCC SGS
    Payment Terms : T/T, Western Union
    Supply Ability : 22000/Per Year
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Portable 20w Fiber Laser Marking Machine 4500DPI Lift Platform

    Portable 20w Fiber Laser Marking Machine 4500DPI Lift Platform


    Laser fiber laser marking machine can widely apply to many industry. This fiber laser marking machine adopts most advanced technology. And the fiber lasers are of exceptional quality and without consumables and any maintenance . If you have a high demand for fiber laser beams, then this fiber laser marking machine will definitely be your choice.


    Main features of fiber laser marking machine for metal:

    1. 2-year warranty service.
    2. Fast marking speed, high marking precision.
    3. Professional and powerful control system.
    4. Small and fashionable appearance.
    5. High speed: 3-5 times than the traditional marking machine.
    6. The machine has a variety of power
    fiber lasers that can achieve different laser effects on most materials (metal, plastic, ceramic, etc.).
    7. All adopt adjusting scanning galvanometer, which has the advantages of high efficiency of the photoelectric transducer,
    high reliability, and free maintenance.
    Model
    FST-split fiber marking machine
    Laser Type
    Fiber Laser
    Working area
    110*110/150*150/200*200/300*300(mm)
    Laser power
    20W/30W/50W/100W
    Laser wavelength
    1064nm
    Beam quality
    m²<1.5
    Application
    metal and nonmetal
    Marking Depth
    ≤1.2mm
    Marking Speed
    800 standard characters/second
    Minimum Line Width
    Minimum Line Width
    Minimum Character
    0.15mm
    Repeated Precision
    ±0.003mm
    Focus Spot Diameter
    <0.01mm
    Communication Interface
    USB
    Working voltage
    220V / 50HZ / single phase or 110V / 60HZ / single phase
    Cooling Mode
    Air Cooling
    Supported graphic formats
    AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
    Controlling software
    EZCAD
    Working temperature
    15°C-45°C
    Rsolution ratio
    <4500DPI
    Optional parts
    Rotary Device, Lift platform, other customized Automation
    Color
    Blue and white
    Warranty
    2 year
    Package
    Standard wooden case packing
