    1.064um Laser Welding Machine For Stainless Steel

    Ask Lasest Price
    Brand Name : Maxwave
    Model Number : MW-JW200W
    Certification : CE FCC SGS
    Payment Terms : T/T, Western Union
    Supply Ability : 20000/Per Year
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    1.064um Laser Welding Machine For Stainless Steel

    1.064um Laser Welding Machine For Stainless Steel

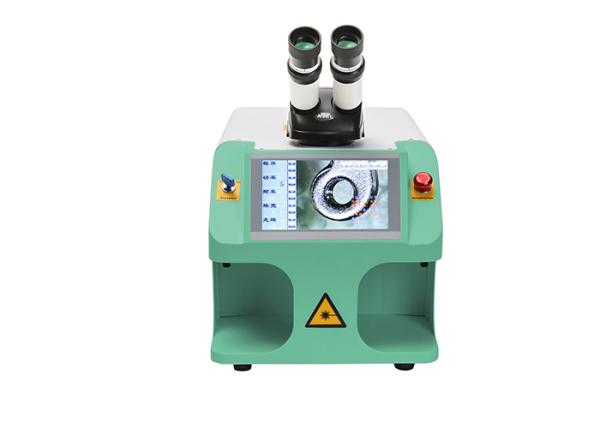

    Jewelry Laser Welding Machine Dental Used Jewelry Laser Welder Smith Machines


    1. System configuration

    Main partsBrief describing
    LaserΦ7 superior YAG crystal, ceramic focus cavity
    Laser power supplyMW-DW200 pulse power supply

    Special Cooling System

    Unitization special chiller,over temperature alarming,flow protecting.
    Control SystemSingalchip(pic)
    Viewing System8X microscope viewing system

    2.The requirement of the power supply:, AC 220V±10%,4KW

    3.Working environment

    Clean and far from the source of vibration. Temperature around 10℃~32℃, humidity low than 85%.

    4.Continuously workingtime

    It can continuously work more than 8hours.


    ModelMX-60WMX-200W
    Output power60W200W
    Laser wavelength1064nm1064nm
    Pulse frequency80J100J
    Pulse Width≤15Hz≤15Hz
    Focal Diameter0.1-3.0mm0.1-3.0mm
    Rated power≤5KW≤5KW
    Power supplyAC220V/50-60HzAC220V/50-60Hz
    Control systemMicrochip CPUMicrochip CPU
    Cooling systemInternal coolingInternal cooling


    Applications:
