HD CCD Monitor Stainless Steel Laser Welding Machine 300W 120J

Stainless Steel Mould Repair Machine Laser Welder Mold Laser Welding Machine Price

Parameter

Description

The machine mechanical arm could lifted up and down, 360 degree rotation, and can weld large molds with a radius of 1.5 meters and a few tons of weight. The equipment is equipped with roller skating and easy to move. It can be moved to injection or die-casting mold for direct repair.

Feature

• Faster and better than traditional welding machine
• Nice welding performance ,hihg precision ,saves cost
• Update structure of manipulator system
• Automatic control system with nice repair effect
• Economical and affordable
• Good welding effect ,welding firmly
• Small heat afected area m weid applicability

Details

1.Adopted UK imported ceramic condenser cavity:

Corrosion resistance, high-temperature resistance, long service life.The laser power feedback control system to ensure the stability of laser energy output.

2.Motic HD microscope:
10 x microscope amplification,cross cursor indicator,and adopting advanced automatic shading system.synchronization with the laser output of shielding gas,to make sure the solder joints and beautiful and smooth.

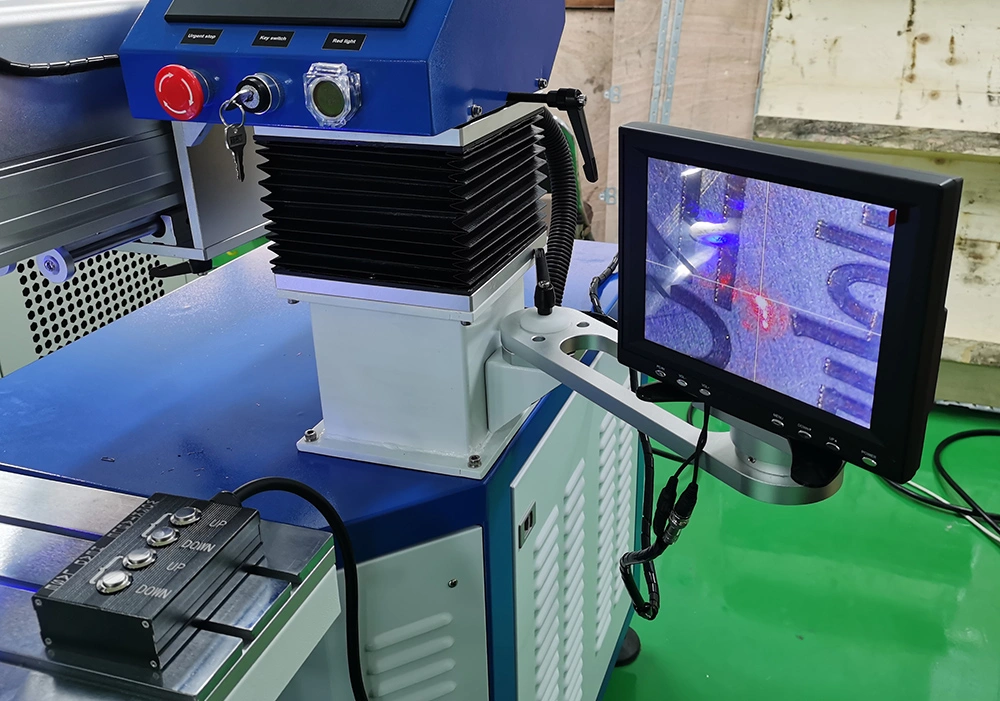

3.CCD Camera:
Adopts China famous brand CCD camera, LCD screen and red pointer.
CCD camera can photo-shot the welding details and transmit the signal to LCD screen.The welding effect is more clear and intuitive.

4.X / Y / Z three-axis mobile work platform:
Electric lifting for the working table,fixed focus more quickly.X/Y platform design sports flexible, able to complete a one-time combination welding curves, straight, single-point and other complex processes.

5.LCD Colorful Screen:
The operation interface of the welding machine control system is simple and practical.Pulse width, frequency and speed can be adjusted on the screen and no need PC. Can save 50 sets of frequently used welding parameters. easy to use.

6.Water Chiller:
BY-LW36 Industrial chiller.Cooling capacity of 3600W, high power cooling effect is more stable.With compressor could cool down laser quickly to ensure that the laser has stable power and efficient and fast operation.
Exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction, System alerts and stops working,can protect the working life of laser effectively.

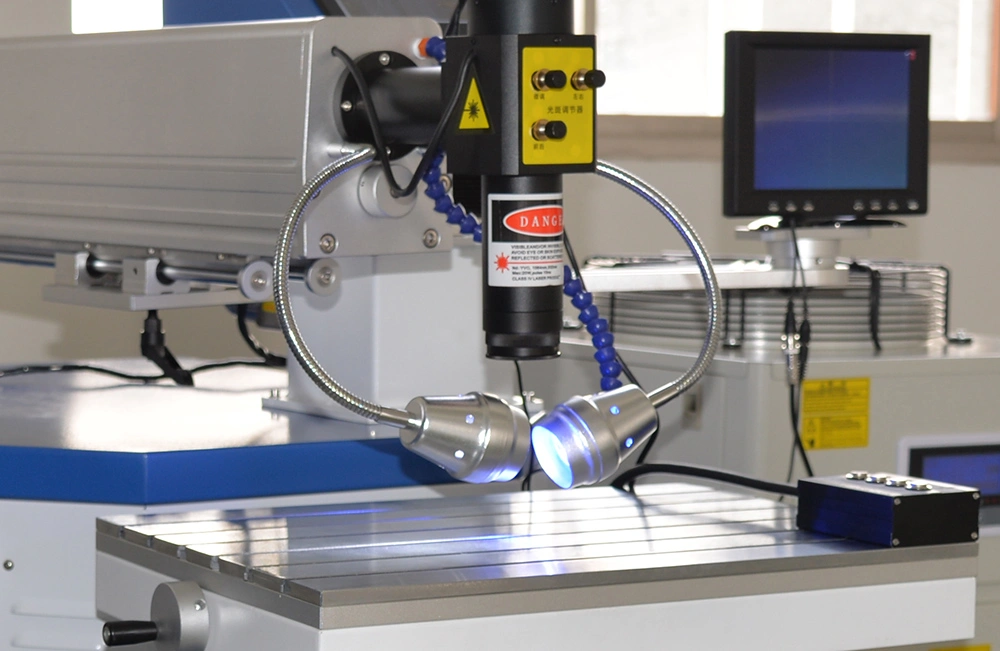

7.LED Light:
Standard comes with 2 high-light camera auxiliary lights, a white CCD auxiliary light, and a blue microscope auxiliary light. The auxiliary lighting uses energy-saving high-light bulbs with clear imaging and good heat dissipation effect, and will not burn the skin for a long time.

8.Foot Pedal:
Protective foot switch can prevent the switch from being touched by mistake.

Samples

Welcome to our factory!

Maxwave technology originated in 2009, the company is the first to design UV printer for wall and ground. After continuous improvement in technology,Now we can supply UV wall printer, large format UV printer as well as all kinds of CNC laser machines.All products can be customized. . At present, the products are exported to 48 countries and have obtained many certificates such as CE and ISO. We will attach great importance to your questions and needs, welcome to leave your business inquiry!

Our service

1.Core technology. When we were a small factory, we have focused on the development of core components such as laser power supplies and optical path. Unlike other suppliers, they only sell through assembly equipment.

2. Independent research and development department. This means we can offer our customers customized machines and improve the equipment according to market changes.

3. Dealer support plan. In the early stage of customers' market development, we provide technical parameters for the installation and use of equipment free of charge, share good marketing methods, help customers win the market and achieve success.

4. Strict testing. All of the suppliers we work with come from world-class manufacturers. Before the delivery, each machine needs to be tested and inspected for 48 hours (marking machine, welding machine) and 4-7 days (cutting machine) to ensure quality and safety.

5. Timely delivery. Each machine has an accurate assembly process and strict time control to ensure that customers receive goods in a timely manner.

6. After-sales service and guarantee. We offer a 2-year warranty and any problems occur during the period and we have a responsibility to resolve them. If any part of the machine is broken, we will repair it for free and send free accessories.


Our attitude: Committed to providing the most professional solutions, using laser technology to create value for customers.
