Stainless Steel Desktop Laser Welding Machine 1064nm Protective lens

    Buy cheap Stainless Steel Desktop Laser Welding Machine 1064nm Protective lens from wholesalers

    Buy cheap Stainless Steel Desktop Laser Welding Machine 1064nm Protective lens from wholesalers
    • Buy cheap Stainless Steel Desktop Laser Welding Machine 1064nm Protective lens from wholesalers

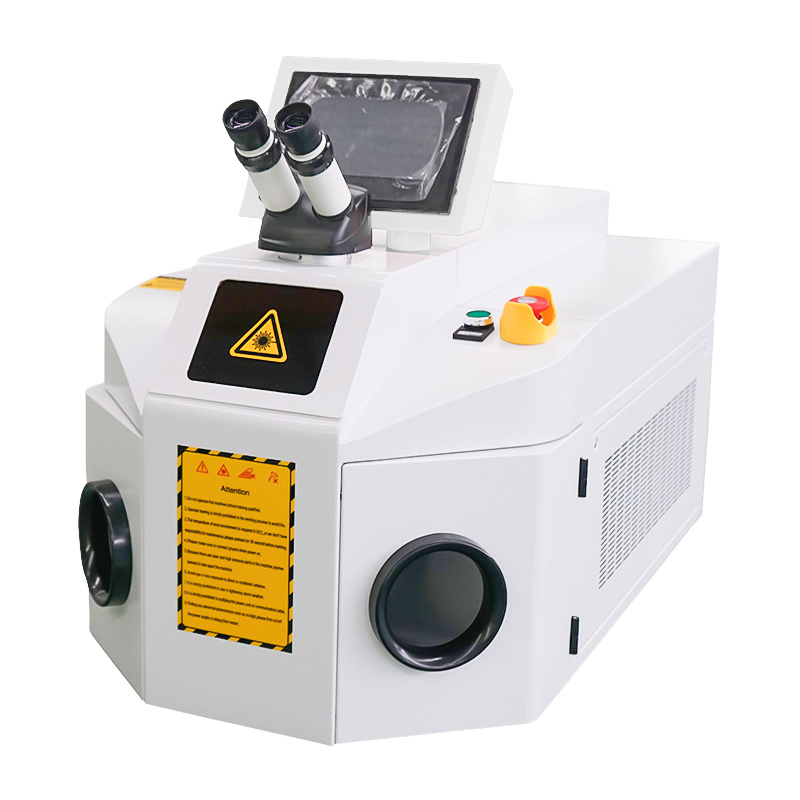

    Stainless Steel Desktop Laser Welding Machine 1064nm Protective lens

    Ask Lasest Price
    Brand Name : Maxwave
    Model Number : MW-DW200
    Certification : CE
    Price : 3399USD/set
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500set per year
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Stainless Steel Desktop Laser Welding Machine 1064nm Protective lens

    Stainless Steel Desktop Laser Welding Machine 1064nm Protective Lens

    Stainless Steel Gold Jewelry Desktop Portable Small Mini Yag 200W Ccd Laser Welding Machine


    Product Description

    Desktop jewelry laser spot welding machine is a laser welding equipment dedicated to the metal jewelry industry. It is mainly used for gold jewelry laser welding, silver jewelry laser welding, titanium alloy jewelry laser welding, stainless steel jewelry laser welding, and manual laser welding of small metal parts. Welding etc. It has the characteristics of high precision, low energy consumption, firm welding and small size.
    Product Features
    1. Imported ceramic concentrating cavity, high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life. 2. The laser energy, pulse width, and frequency are adjustable, suitable for precision welding of various metal micro-small parts and jewelry; 3. The internal space is large, which is convenient for the placement of laser spot welding tools and fixtures; the welding debris recovery box is installed for easy cleaning and gold welding slag recovery. 4. LED ring-shaped shadowless lamp, observing the workpiece without shadow, with the high-definition parallel light path microscope, the laser welding position can be observed more clearly. 5. High-power beam expansion system to obtain a finer light spot to meet the needs of fine laser spot welding. 6. The protective gas output by the laser synchronously ensures that the solder joints are beautiful without oxidation and discoloration. 7. The whole machine conforms to ergonomic design, which is more suitable for the jewelry industry, with stable performance and suitable for long-term continuous work.
    Technical Parameters
    Model
    CM-WJ100
    Laser Power
    100W
    Laser Wavelength
    ND:YAG /1064nm
    Welding Mode
    Spot welding
    Modulation Frequency
    1-20Hz
    Focal Spot Diameter
    0.1-1.5mm adjustable
    Pulse Width
    1ms-20ms adjustable
    Peak Energy
    60J
    Welding Bath Depth
    0.05-2mm(Depending on the material)
    Observation Method
    Optional microscope or CCD camera
    Cooling Mode
    Built-in Chiller
    Consumables
    Xenon lamp, Protective lens, Water, Protective gas (or compressed air)
    Power Consumption
    3KW
    Power Requirement
    220V/ 50-60Hz
    Dimension & Weight
    850*500*600mm & 80KG
    Product Details
    .Power Supply
    Reasonable circuit layout, stable and safe performance.
    .Laser Cavity
    Imported ceramic concentrating cavity, strong energy, high temperature resistance, corrosion resistance, convenient replacement of xenon lamp, good airtightness.
    .Operation Interface
    Using touch screen operation interface, simple, sensitive.
    .CCD Microscope
    High-definition flat light road CCD microscope, equipped with LED shadowless ring lamp, welding position clearly visible.
    .Welding Area
    The welding area has a large space, which is convenient for the placement of welding tools and fixtures; and a welding debris recovery box is installed for easy cleaning and recovery of precious metal welding slag.
    .Pedal Switch
    Equipped with pedal switch, which is convenient for operation and improves work efficiency.
    Product Applications
    Widely used in precision casting welding, such as: jewelry, dentures, clocks and watches, medical, instrumentation, electronics, mechanical mold processing, automobiles and other industries. It is especially suitable for the welding of gold and silver jewelry's repair holes, spot welding sand holes, repair seam patterns, inlaid parts and claw feet.
    Sample Photos

    Quality Stainless Steel Desktop Laser Welding Machine 1064nm Protective lens for sale
